Narada Lithium Batteries

R19,435.00

Two Mounting Methods：

    • 1 Wall Mounted with Wall Bracket
    • 2 Floor Stand With Detachable Floor Bracket

Download Brochure

Details
Parameters

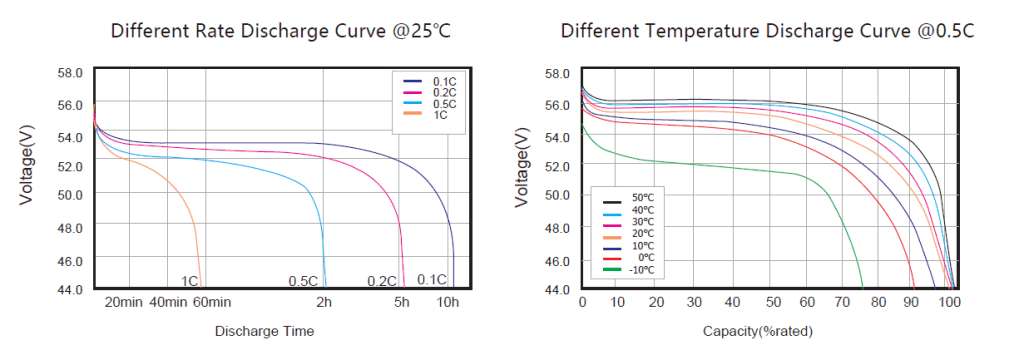

DIFFERENT CURRENT/TEMPERATURE DISCHARGE CURVES

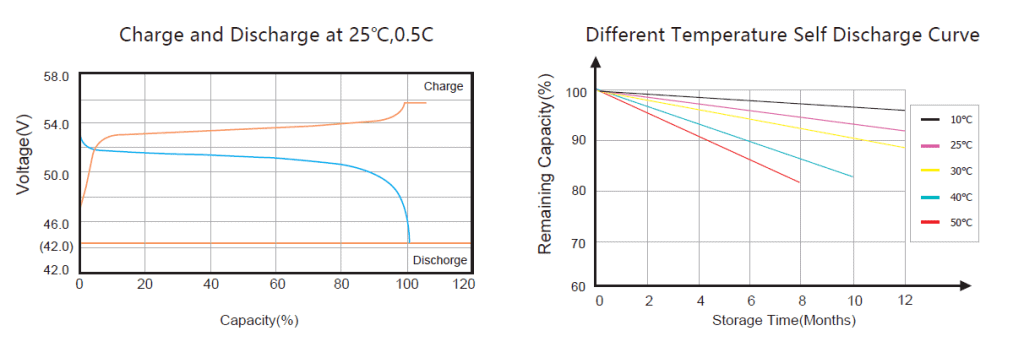

CHARGING AND DISCHARGE CURVE

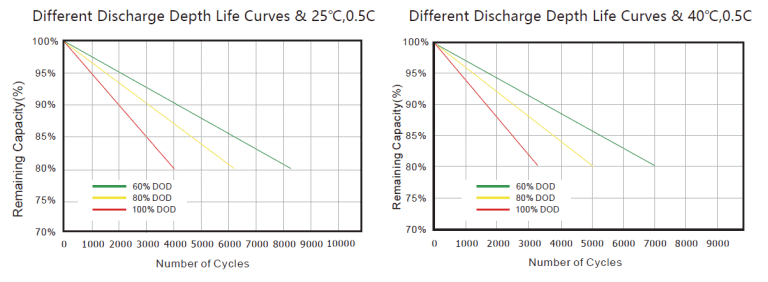

CYCLE LIFE CURVE

Product Model VOLTA STAGE 1 VOLTA STAGE 2 VOLTA STAGE 3 VOLTA STAGE 4
Nominal Energy 5.12KWH 7.68KWH 10.34KWH 14.34KWH
Nominal Voltage 51.2V 51.2V 51.2V 51.2V
Nominal Capacity 100Ah 150Ah 202Ah 280Ah
Cell Type LFP LFP LFP LFP
Standard Charge Voltage 56V 56V 56V 56V
Max Discharge Current 100A 150A 150A 200A
Discharge Cut-Off Voltage 44.8V 44.8V 44.8V 44.8V
Parallels Function Support 8 Units In Parallels
Communication Interface RS485、RS232、CAN (Optional)
Cycle Life * ≥6000 Cycles (80%DOD)
Charge temperature range 0~65℃
Discharge temperature range -20~65℃
Certification MSDS / UN38.3
Dimensions 480*600*150mm 480*650*180mm 480*650*225mm 480*650*225mm
Weight 58Kg 80Kg 93Kg 130Kg
Installation method Wall Mounted/Floor Standing
Warranty 10 Years(under warranty terms)
